residual transformer
residual transformer

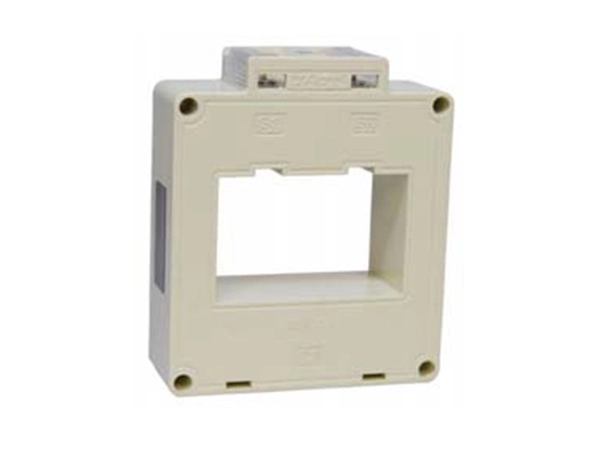

AKH-0.66/L Residual Current Transformer

  • Accuracy: Class 1

  • Ratio: 5A/5mA

  • Rated current: 16~100A

  • Suitable for electricity renovation project

Contact Us
Specifications Drawings

Specifications of AKH-0.66/L Residual Current Transformer

TypeRated Current(A)Primary (A)Secondary (mA)Class

Burden(Ω)

Overload
L-80x 50II100-200A5A5mA11008
L-100x50II250-400A
L-130x50II16-100A
L- 150x 130II16- 100A
L-180II450-800A
L-200x50II100-300A
L-260x 100II100-200A

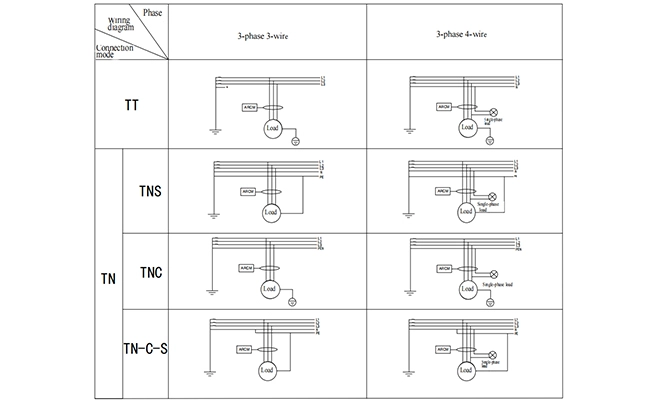

Drawings of AKH-0.66/L Residual Current Transformer

residual current transformer residual transformer
