ADL10-E 1P Single Phase Electric Energy Meter

Name: ADL10-E 1P Single Phase Electric Energy Meter
Brand: Acrel Co.,Ltd.

ADL10-E single phase electric meter is designed for single phase energy measurement on low voltage system.The meter meet the related technical requirements of electronic meter in the IEC62053-21、IEC62053-22 standards.

● Input Current 60A

● LCD Display

● RS485 (MODBUS-RTU)

Features Specifications Drawings

Features of ADL10-E 1P Single Phase Electric Energy Meter

Small Compact Size

● Dimension (L*W*H): 18mm*88mm*70mm

Small Compact Size

Diverse Electricity Parameters Measurement

● U (Voltage)

● I (Current)

● P (Power)

● Q (Reactive power)

● S (Apparent power)

● PF (Power factor)

● kWh (Kilowatt-hours)

● kVarh (Kilovar-hours)

Diverse Electricity Parameters Measurement

DIN Rail Installation

● 35mm standard DIN rail

LCD Display

● 8 digits

LCD Display

Specifications of ADL10-E 1P Single Phase Electric Energy Meter

Function	Function	Function description	Function provide
	Measurement of kWh	Single-phase active kWh (positive and negative)	■
	Measurement of electrical parameters	Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency	■
	LCD Display	8 bits section LCD display	■

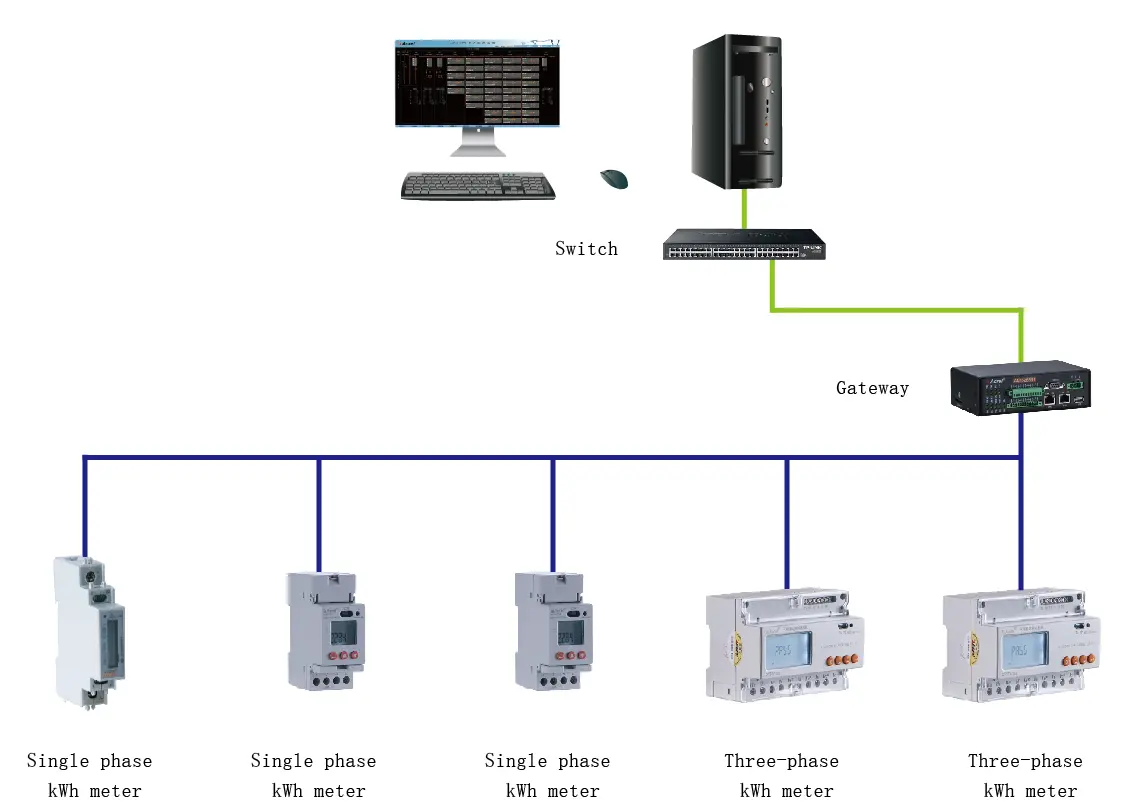

	Communication	Communication interface: RS485, Communication protocol: MODBUS-RTU	□
Electric performance	Input voltage	Reference voltage	AC220V
		Reference frequency	50Hz
		Power consumption	<10VA
	Input current	Basic current	10A
		Maximum current	60A
		Starting current	0.004Ib
		Consumption	<4VA (Maximum current)
Mechanical performance	Measurement performance	Accuracy of measuring	1 Class
	Measurement performance	Range of measuring	000000.00~999999.99kWh
	Communication	Interface	RS485(A+、B-)
		Connection mode	Shielded twisted pair conductors
		Protocol	MODBUS-RTU
	Outline (Length × Width × Height)	18mm×96 mm×70mm
Work environment	Range of temperature	Working temperature	-25℃~55℃
	Range of temperature	Storing temperature	-40℃~70℃
	Relative humidity		≤95%(No condensation)
	Altitude		<2000m
