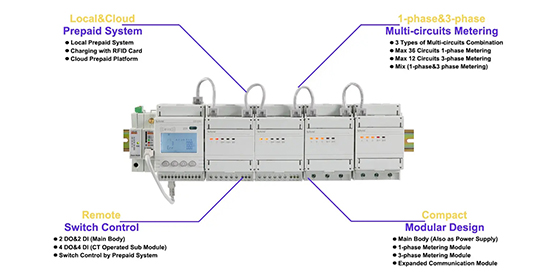

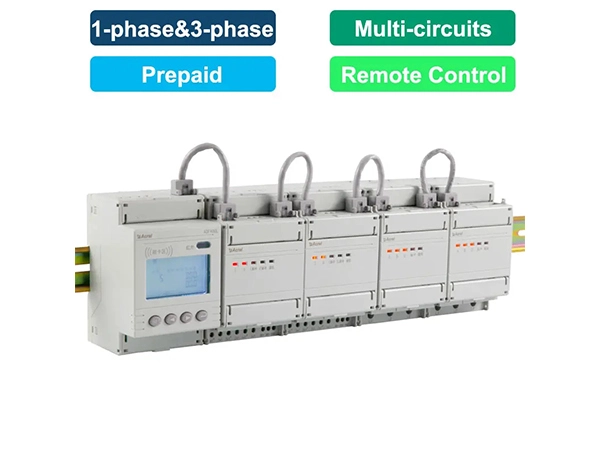

ADF400L Multi Circuits Three Pahse Energy Meter

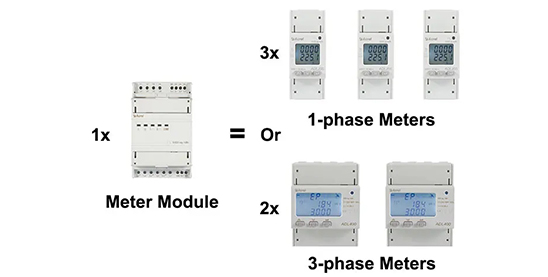

Compact Modular Design

● Main Body (LCD&Keypads HMI)

● 1-phase Metering Module

● 3-phase Metering Module

● Expanded Communication Module

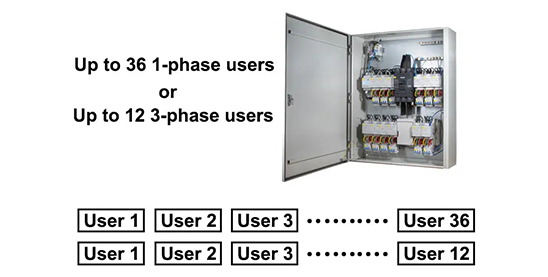

Multi Circuits Metering for 1-phase&3-phase

● 3 Types of Multi-circuits Combination

● Max 36 Circuits 1-phase Metering

● Max 12 Circuits 3-phase Metering

● Mixed (1-phase&3-phase Circuits Metering)

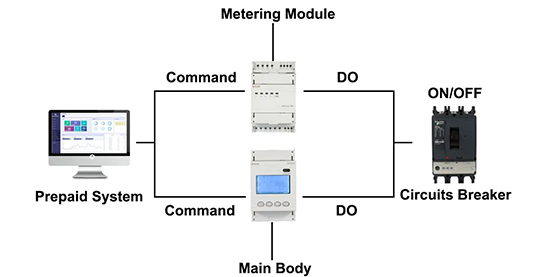

Remote Switch Control

● Control&Read Status of Switches

● 2 DO&2 DI (Main Body)

● Dry Contact DI (Main Body)

● 4 DO&4 DI (CT operated Sub Module)

● 220V AC Wet Contact DI (CT operated Sub Module)

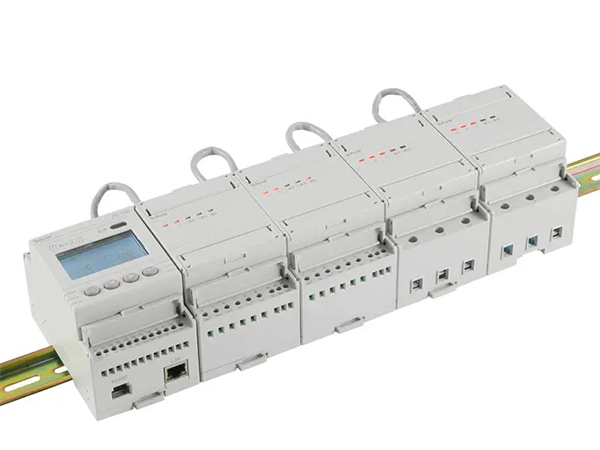

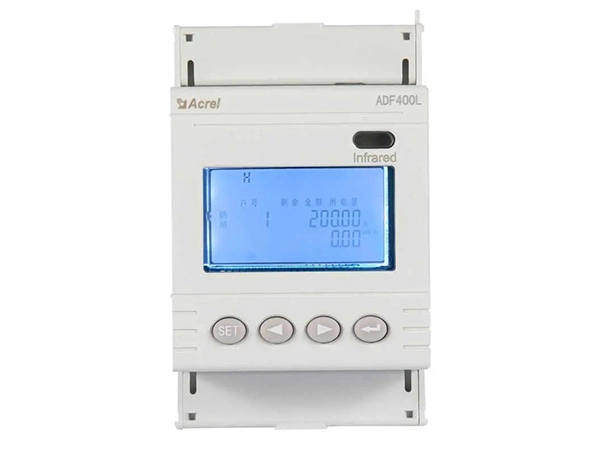

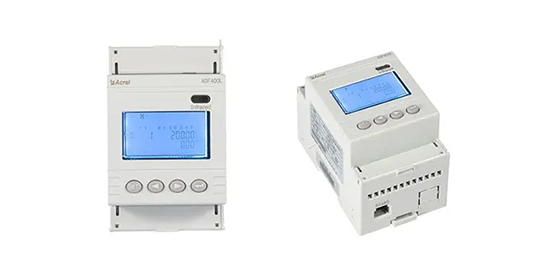

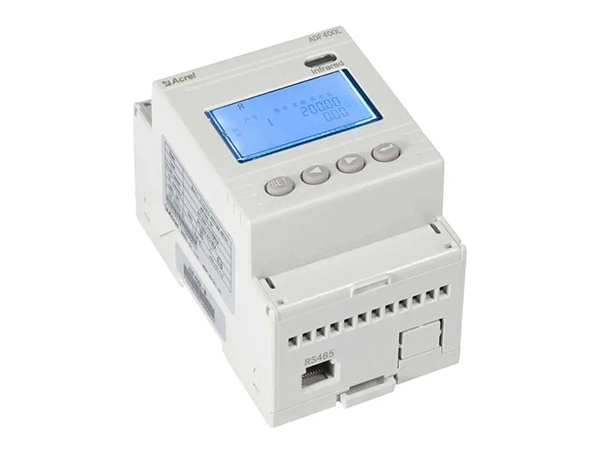

Main Body

● Max 36 Circuits 1-phase or 12 Circuits 3-phase

● Max 12 Modules (1-phase) or 6 Modules (3-phase)

● RS485 (MODBUS-RTU); Ethernet

● LCD&Keypads HMI

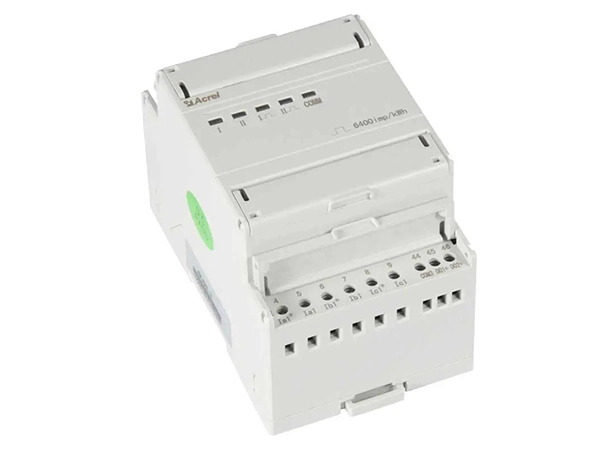

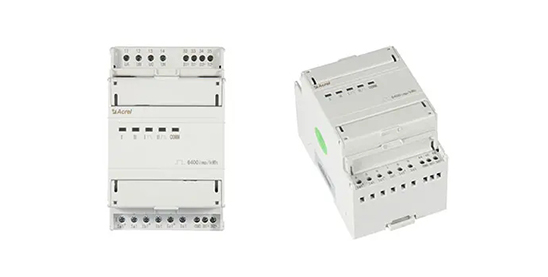

Sub Module (Connection via CTs)

● Monitor Max 2 Circuits 3-phsae

● 3x1(6)A AC (CT Operated Connection)

● 4DO&4DI (220V AC Wet Contact DI)

● LED Indicator

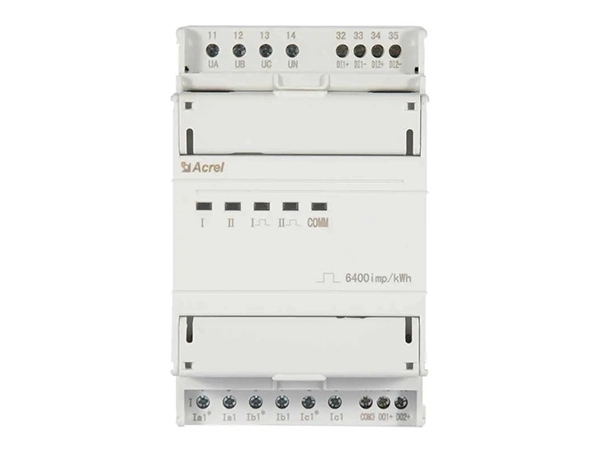

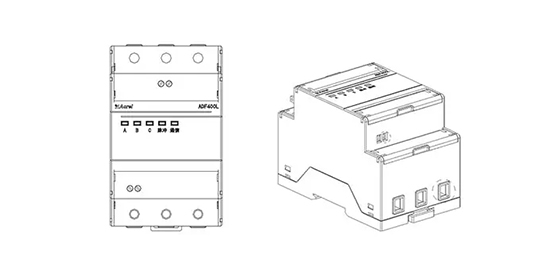

Sub Module (Direct Connection)

● Monitor Max 3 Circuits 1-phase or 1 Circuits 3-phase

● Max 80A AC Direct Load Current

● LED Indicator

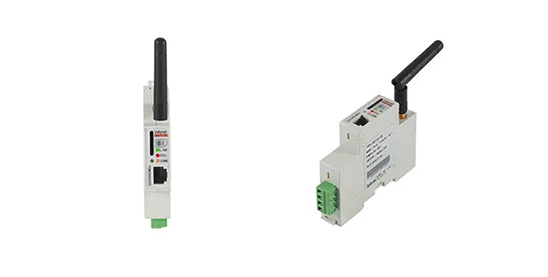

Expanded Communication Module

● Upstream: 4G/WiFi/LoRa/LoRaWAN/NB-IoT

● Downstream: RS485 (MODBUS-RTU)

● RJ45 Interface (connected with Main Body)

● Power Supply: 24V/12V DC or 220V AC/DC
